Buraq AI Aerial Intelligence

DRONE
SYSTEMS

Autonomous ISR platforms delivering persistent surveillance, real-time intelligence, and encrypted data relay to the Buraq AI platform.

400m AGL Altitude
4h+ Endurance
15km Range
AES-256 Encryption
ISR: ACTIVE
AI Detection: ENABLED
Data Relay: ENCRYPTED
Autonomous Nav: GPS-DENIED READY
Platform: FIELD READY
Capabilities

Built to see everything.
Miss nothing.

01

Persistent Surveillance

Continuous wide-area monitoring with optical, thermal, and multispectral sensors. Maintain uninterrupted coverage of designated areas of interest during active operations.

Optical Thermal Multispectral
02

AI Target Identification

On-board AI detects, classifies, and tracks objects in real time — vehicles, personnel, structures, and assets — without latency-inducing cloud dependency.

On-Board AI Auto-Classify <100ms
03

Encrypted Data Relay

All telemetry, sensor feeds, and intelligence data is encrypted AES-256 end-to-end and relayed directly to the Buraq platform, on-premise servers, or Marqab edge nodes.

AES-256 Mesh Relay Marqab-Ready
04

Autonomous Navigation

Operates reliably in GPS-denied, signal-jammed, and contested environments using inertial navigation, optical flow, and pre-loaded mission planning.

GPS-Denied Inertial Nav Auto-Return
Integrated Platforms

Two platforms. One mission.

STORK — FIXED-WING ISR WS: 1600MM
STORK
Fixed-Wing · Long-Range ISR

Long-range fixed-wing reconnaissance platform. 1600mm wingspan, 3D-printed LW-PLA airframe, push-propeller V-tail configuration engineered for maximum endurance over contested terrain.

  • Airframe1600mm wingspan · 950mm fuselage · 24 dm² wing area
  • ConfigPush-propeller V-tail — low radar cross-section
  • Weight1500g ISR config · 3000g max AUW
  • Speed50–60 km/h cruise · 1.21 Wh/km efficiency
  • MaterialsLW-PLA primary · PLA/composite reinforcements
  • AutopilotPixhawk-compatible · FPV + autonomous LOS
  • Data LinkAES-256 encrypted relay to Buraq platform
  • LoiterStable low-speed persistent area surveillance
1600mmWingspan
1500gISR AUW
60 km/hCruise Speed
24 dm²Wing Area
1.21Wh/km
3 kgMax AUW
QR ABABIL
Multi-Rotor · Close ISR & Evidence Capture

Enclosed 7" multi-rotor on carbon-fiber tube arms and CF-Nylon structural nodes. Modular battery swaps, dual-band antennas, and active venturi cooling for extended-range ISR and tamper-proof evidence capture.

  • FrameCF tube arms · CF-Nylon printed structural nodes
  • Prop Class7" primary · 6"/7"/8" configurable per mission
  • ChassisFully enclosed aerodynamic body — field protection
  • Power6S 5000mAh Eve 50 PL · rail-mounted rapid swap
  • ESCiFlight BLITZ E55 · 55A · 20×20 or 30×30 stack
  • RFDual Cavalry 2.4 GHz + 5.8 GHz fore/aft
  • GPSMATEK M10-5883 · 25–30 sat lock · low-EMI
  • ThermalFront cooling duct + dorsal venturi ducts
7"Prop Class
6SBattery
5000mAhPack
55AESC
2.4/5.8GHz RF
25–30Sat Lock
ABABIL — MULTI-ROTOR ISR 7" CLASS

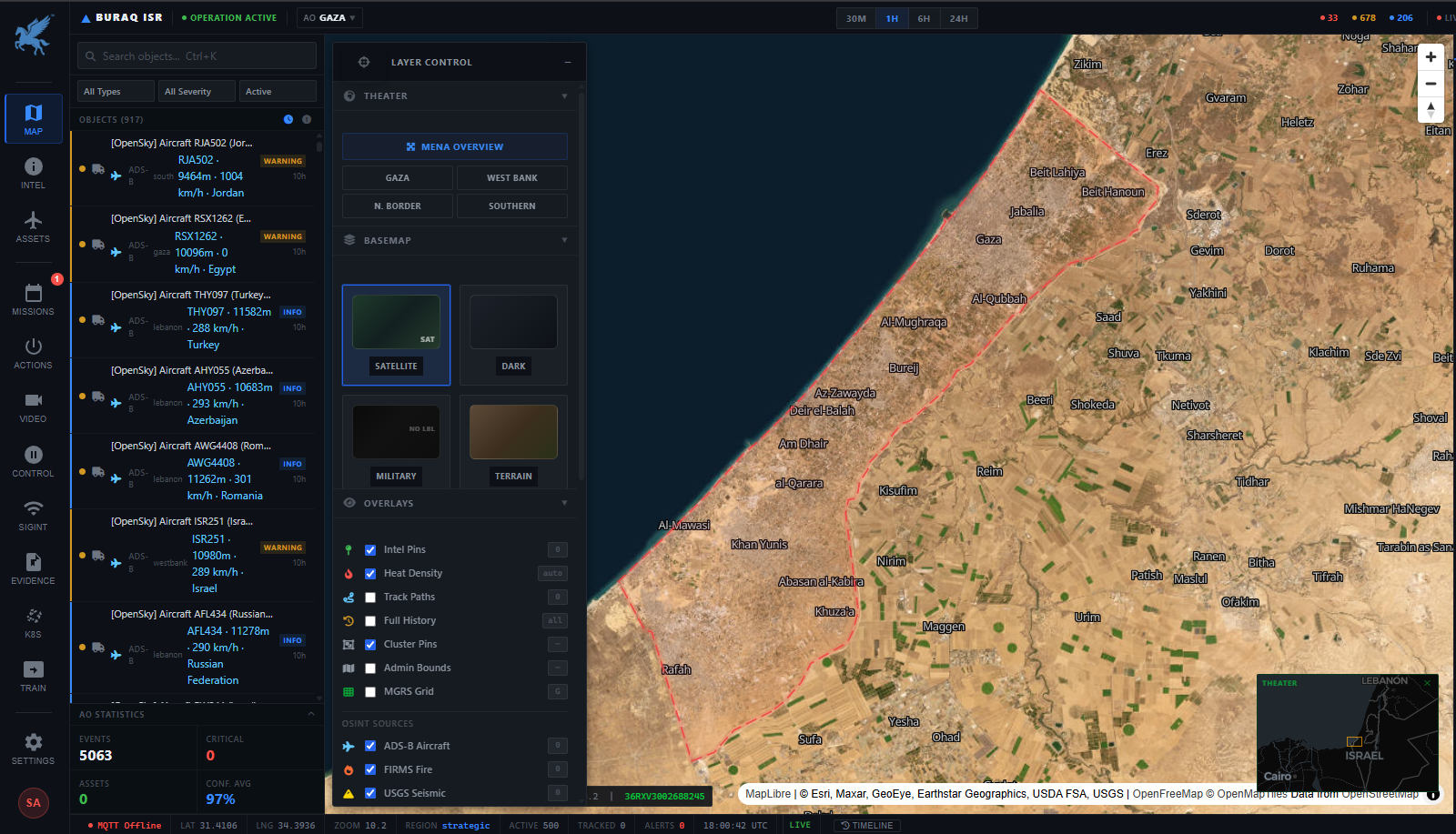

Real-time aircraft detection over conflict zone
— Aerial Intelligence —

Eyes over
the horizon.

Buraq drone systems integrate seamlessly with the platform's geospatial intelligence layer — detected assets are automatically logged, classified, and added to the evidence chain in real time.

Technical Specifications

Engineered for
the mission.

Military-grade construction with open integration standards. Designed for rapid field deployment with minimal support infrastructure.

400m
AGL Altitude
4h+
Flight Endurance
15km
Operational Range
AES-256
Encryption
Platform Integration

Feeds directly
into Buraq.

Every frame captured, every asset detected, every flight log — automatically ingested into the Buraq AI platform as verified, tamper-proof intelligence records ready for analysis and legal accountability.

Request Integration Brief →
01

Live Feed Ingestion

Video, thermal, and telemetry streams are ingested into the Buraq platform in real time via encrypted relay.

02

Automated Evidence Capture

Every detection event is automatically logged with GPS coordinates, timestamp, and cryptographic hash — no manual intervention required.

03

AI Threat Tagging

Detected assets are classified and cross-referenced against the Buraq threat database, surfacing relevant intelligence automatically.

04

Marqab Edge Upload

Where cloud connectivity is unavailable, drone data is relayed through Marqab edge nodes for local processing and store-and-forward delivery.
